AirCheck^® G3 Pro

Wireless Tester

AirCheck^® G3 Pro

Wireless Tester

The AirCheck G3 Pro is a hardware-enabled wireless analysis and site survey solution for Wi-Fi and Bluetooth/BLE networks. Its intuitive user interface provides actionable intelligence, simplifying and speeding up wireless security audits, network deployment, troubleshooting, and validation.

Wi-Fi 7 ready! Delivers real time insights into key Wi-Fi 7 features such as multi link operation (MLO), wider channels, enhanced WPA3 security, and 6 GHz utilization.
Faster and easier Wi-Fi and Bluetooth/BLE site surveys with AirMapper™ Site Survey app.
2.4 GHz, 5 GHz, and 6 GHz spectrum analysis with the optional NXT-2000 Portable Spectrum Analyzer.
Automatically discover and visualize your wired and Wi-Fi network topology in real time with the Link Live™ reporting and analysis platform.
Enables remote engineers to troubleshoot and collaborate with on-site technicians.

With powerful tools suited for wireless engineers, but ease of use for technicians and remote “smart hands”, AirCheck G3 Pro makes your entire team more productive.

Key Features

*Active AllyCare Premium Support required for full AirMapper visualizations and filtering, automatic problem identification via InSites™ intelligence, comprehensive topology mapping, advanced reporting options in Link-Live, and web remote control.

How to use a Portable Wi-Fi Analyzer?

Test it yourself and see how easy it is to use an AirCheck G3 Pro. Click on the orange dots to explore.

Home Screen

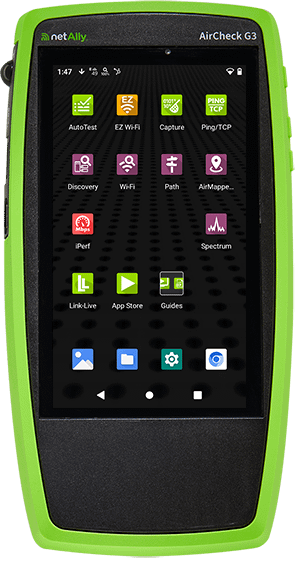

Home Screen

The AirCheck G3 has a dedicated set of Wi-Fi test and management radios which support remote control and testing, and a Bluetooth/BLE radio. Third-party apps downloaded from the Link-Live collaboration, reporting, and analysis platform can use these interfaces for testing and communication purposes.

Benefits:
As a lightweight, handheld, ruggedized instrument, AirCheck G3 is perfect for remote site validation and troubleshooting, eliminating the need to purchase multiple testers, or the need to carry a fragile laptop or tablet. Apps make the user’s workflow more efficient by expanding the usage of the instrument beyond testing, allowing the user to check trouble tickets, run speed tests, configure networked devices, and complete other tasks with its smart tester features.

AutoTest

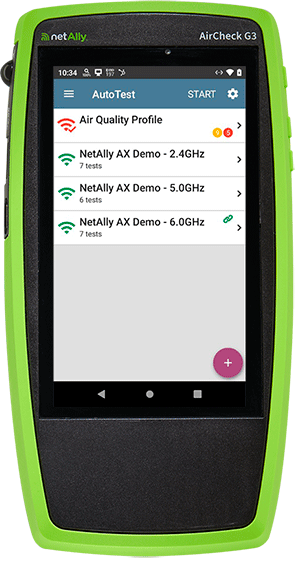

AutoTest

AutoTest is the most comprehensive NetAlly testing app on the AirCheck G3. It allows you to quickly run a variety of test types and save their configurations and network credentials for access whenever you need them. The app is fully customizable with test “profiles” for W-iFi network connections, wireless air quality, and individual “test targets” that can run with any profile.

In the Periodic AutoTest mode, AutoTest runs at specified intervals (from 1 minute to 24 hours) and sends the results to Link-Live to view the results over time. This is an effective way to monitor aspects of your network for an extended period, or to help diagnose intermittent issues without having to manually execute multiple tests.

Benefits:
AutoTest allows engineers to transfer their knowledge of network configurations to the instrument, empowering frontline technicians to run tests against various Wi-Fi SSIDs with minimal training. The result is repeatable, documented tests with shortened overall test times, which otherwise would not be possible with other methods.

Wireless Network Test

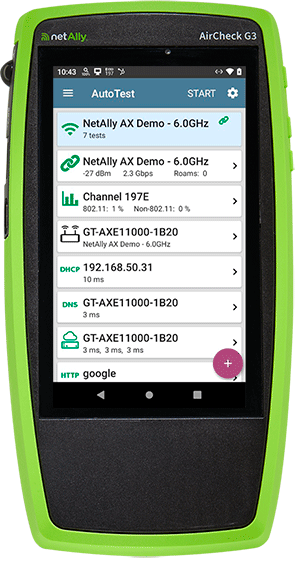

Wireless Network Test

The Wireless Network Test profile verifies signal strength, connection rate, 802.1x authentication, shows Channel Utilization, provides AP information, tests for DHCP/DNS/Gateway response, and verifies connectivity (using Ping, TCP Connect, HTTP and FTP) to an unlimited number of test targets. Users can tap on each card to see more details and click the purple floating action button to attach the connection log or add comments to the test results.

Benefits:
With pre-programmed wireless test profiles with Pass/Fail thresholds, and advanced SSID visibility, it is easy for technicians to test various wireless network configurations with minimal training. The test results, along with connection log and comments, can be uploaded to Link-Live for automated documentation and analysis by remote experts.

Ping

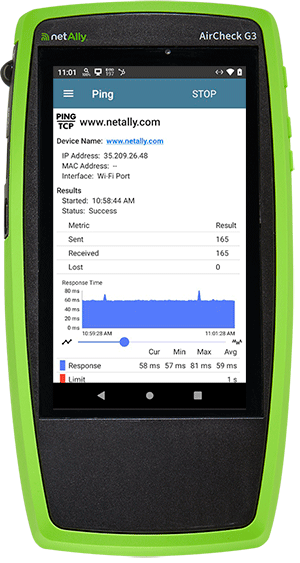

Ping/TCP Test

For key servers/services residing on-prem or in the cloud, engineers can pre-define tests and thresholds to verify their connectivity and performance using ping, TCP connect, HTTP, or FTP.

Benefits:
Continuous testing with response time measurements is available to verify consistency and identify intermittent issues. These tests can be easily recalled by field technicians to reduce configuration time or mistakes, to get more done faster.

WiFi Packet Capture

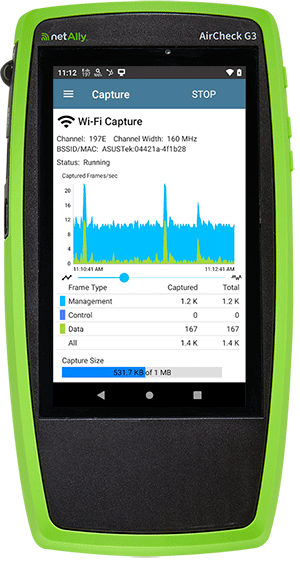

Wi-Fi Packet Capture

You can capture up to Wi-Fi traffic on the 2.4/5/6 GHz bands to create a PCAP file of up to 1Gigabyte. Packet slicing and filtering are supported, and PCAP files can be uploaded to Link-Live for easy sharing.

Benefits:
With its compilation of Wi-Fi troubleshooting tools, the AirCheck G3 makes it quick and simple to identify the root cause of Wi-Fi network problems.

Network Discovery

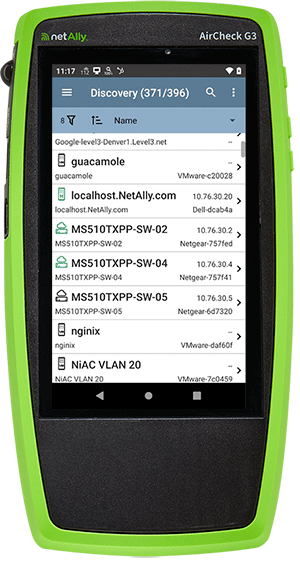

Network Discovery

The AirCheck G3 automatically discovers your network through its set of Wi-Fi interfaces immediately upon power-up.

Devices are classified and correlated to provide complete visibility of their name and device type, network addresses, VLAN, SSID, and where available, traffic statistics. Engineers can add names and authorization status for devices discovered. Discovery results can be directly uploaded to Link-Live for detailed analysis of devices discovered with filter and sort tools, topology mapping, or export to CSV/PDF files as documentation.

Benefits:
The AirCheck G3 breaks the layer 2 visibility ceiling and makes it easy to discover the actual identity of a Wi-Fi device by showing its name and IP address while most other Wi-Fi tools only show the MAC address.

WiFi Channel Map

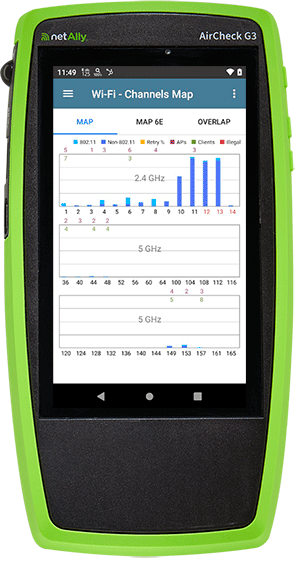

Wi-Fi Channel Map

The Wi-Fi channels map provides a visual representation of 802.11 utilization and non-802.11 utilization for each channel on the 2.4/5/6 GHz bands. It also shows number of APs, number of Clients, retry percentage, and number of illegal devices for each channel.

Benefits:
Quickly determine if channels are over-utilized with Wi-Fi traffic and/or with non-Wi-Fi interference and noise. You can also gain visibility on the level of Wi-Fi traffic and interference over the last 60 seconds on a selected channel, as well as the access points and clients using this channel.

WiFi Device Details

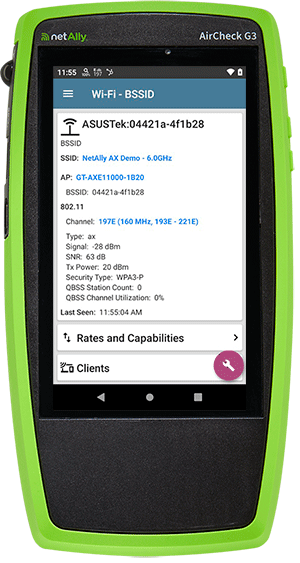

WiFi Device Details

The AirCheck G3 automatically discovers your network through its dual set of Wi-Fi radios immediately upon power-up. The discovery provides quick security and health audits of the network devices across all Wi-Fi channels.

Devices are classified and correlated to provide complete visibility of their name, network addresses, SSID, device type, configuration, and where available, traffic statistics. Engineers can name and set authorization status for devices discovered. Discovery results can be directly uploaded to the complimentary Link-Live Cloud Service for storage, conduct detailed analysis of devices discovered with filter and sort tools, or export to CSV/PDF files as documentation.

Benefits:
The AirCheck G3 correlates the discovery results from the Wi-Fi networks and breaks the layer 2 visibility ceiling. AirCheck G3 makes it easy to discover the actual identity of a Wi-Fi device by showing its name and IP address while most other Wi-Fi tools only show the MAC address.

WiFi Troubleshooting Tools

Wi-Fi Troubleshooting Tools

The AirCheck G3 Wi-Fi device discovery automatically detects problems. It shows possible cause(s), and it has integrated Wi-Fi troubleshooting tools to investigate further and get to root cause.

• Connection Test: Verifies connection and authentication to selected networks on the 2.4/5/6 GHz (including Wi-Fi 7) bands. It checks the connected channel utilization, tests for DHCP/DNS/Gateway response, and validates connectivity to multiple test targets.

• Roaming Test: In the Wi-Fi link test graphs, anytime the AirCheck G3 roams and connects to a new AP, a red vertical line will be shown in the graph. Seeing the correlation between various factors and the roam can help diagnose roaming successes as well as failures.

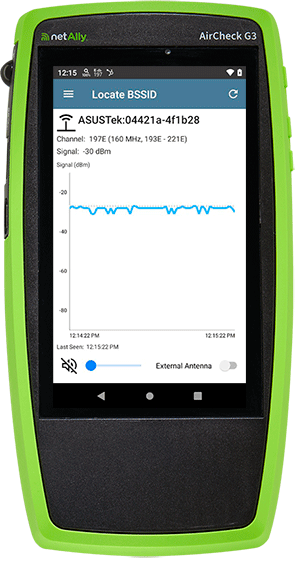

• Locate: Simplifies the process of physically locating both AP and Client devices by measuring their signal strength. Making it easier to find rogue devices or locate APs that need to be replaced.

Benefits:
With its compilation of Wi-Fi troubleshooting tools, the AirCheck G3 makes it quick and simple to identify the root cause of Wi-Fi network problems.

Path Analysis

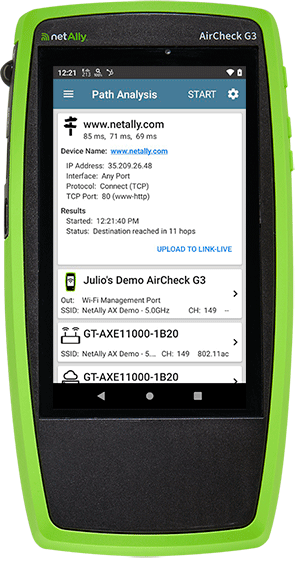

Path Analysis

Path Analysis traces the connection points, including intermediate switches and routers, between the AirCheck G3 and a destination URL or IP address. Path Analysis uses SNMP queries to identify issues such as overloaded interfaces, overloaded device resources, and interface errors. It also shows how devices within your network (and off-net devices) are connected.

The Path Analysis app can test through any one of the two network interfaces that have established a connection to the network and have an IP address.

Benefits:
AirCheck G3 has the unique ability to break through the “visibility ceiling” between Wi-Fi and wired networks, showing who and what is on your network, where they are connected, and their path across your network.

iPerf Performance Test

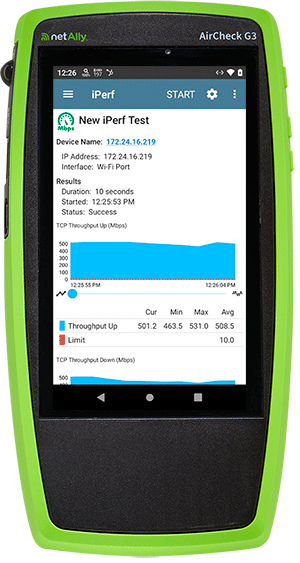

iPerf Performance Test

The AirCheck G3 uses iPerf v3 to run performance tests against the NetAlly Test Accessory or any iPerf v3 server. Performance can be measured using TCP or UDP throughput in the upstream or downstream direction.

Benefits:
The iPerf app verifies SLA of critical network links that support critical devices like servers, network-attached-storages, and high-speed Wi-Fi access points, ensuring you are getting the bandwidth you expect.

AirMapper Site Survey

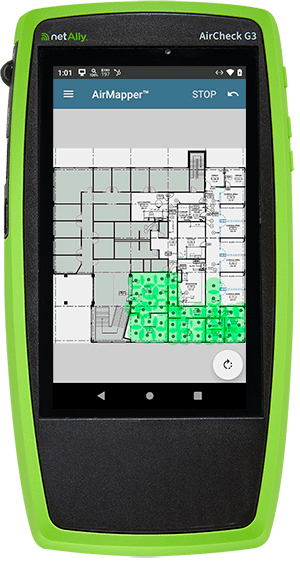

AirMapper™ Site Survey for
Wi-Fi & Bluetooth/BLE

With AirMapper, AirCheck G3 users can quickly and easily gather location-based Wi-Fi and Bluetooth/BLE measurements and create visual heat maps of key performance metrics in the Link-Live collaboration, reporting, and analysis platform or AirMagnet Survey PRO.

Automatically push pre-configured and calibrated floorplans from Link-Live to testers in the field. Then touch START to begin the survey. Tap at various points on your floor plan to collect data and when done, tap STOP, then touch the save icon to send your results to Link-Live for sharing and analysis.

Benefits:
Faster and easier than using a laptop or tablet with an attached dongle or tethered device, AirMapper is ideal for quick site surveys of new deployments, change validation, and performance verification. The ease and portability of this solution enables technicians to quickly troubleshoot or validate Wi-Fi and Bluetooth networks by measuring the real-world experience of mobile device users.

Spectrum Analysis

Spectrum Analysis

Trying to find the source of Wi-Fi interference on a wireless network is hit or miss with the wrong tools. Using the optional NXT-2000 Portable Spectrum Analyzer, AirCheck G3 offers a view of RF interference in the 2.4, 5, and 6 GHz bands and its impact on the wireless network’s overall performance. Key graphs and charts include:
• Real-Time FFT – Provides a live RF view including current, average and max readings.

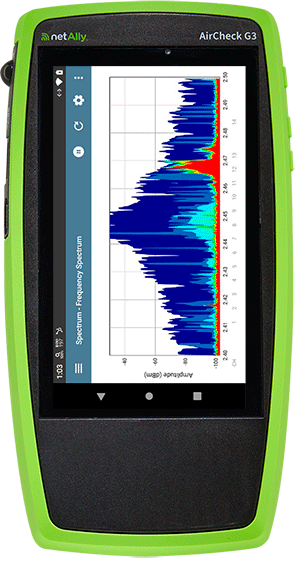

• Frequency Spectrum – Displays heat mapped signal density to identify recurring energy.
• Waterfall – Shows energy over time to identify the periodic nature of the RF environment.

Benefit:
Simplifies interference troubleshooting and location by providing visibility into the 2.4/5/6 GHz spectrum bands, plus helps secure the Wi-Fi network by inspecting No Wireless Zones and detecting and locating intentional RF interference sources such as RF jammers.

Models & Accessories

IMPORTANT NOTES: Wi-Fi regulatory compliance implementation of the 6 GHz spectrum varies by country.

AirCheck G3 Pro models are available in three versions: Full Tri-Band (capability across the entire 6 GHz band), Partial Tri-Band (capability for only certain channels in the 6 GHz band as determined by 802.11d regulatory domain information), and Dual Band Only (for countries where operation in the 6 GHz band is not allowed.) Be sure to select the model that is certified for use in your specific country. Please contact your NetAlly reseller for more information.

The models shown on the table below are for the “Full Tri-Band” version. Replace “AIRCHECK-G3” with the following for the other model types:

AIRCHECK-G3E – Partial Tri-Band (802.11d dependent)
AIRCHECK-G3C – Dual Band Only (2.4/5 GHz)

Model Number/Name	Description
AIRCHECK-G3-PRO	Includes: AIRCHECK-G3-PRO mainframe with one-year of AllyCare support (AIRCHECK-G3-PRO-1YS), shoulder sling bag, AC charger, Quick Start Guide.
AIRCHECK-G3-KT-X2	Includes: AIRCHECK-G3-PRO mainframe with one-year of AllyCare support (AIRCHECK-G3-PRO-1YS), shoulder sling bag, AC charger, Quick Start Guide, external directional antenna, holster, and NXT-2000 spectrum analyzer.
AIRCHECK-G3-TKT-X2	Includes: AIRCHECK-G3-PRO mainframe with one-year of AllyCare support (AIRCHECK-G3-PRO-1YS), shoulder sling bag, AC charger, Quick Start Guide, external directional antenna, holster, NXT-2000 spectrum analyzer, and Test Accessory.
TEST-ACC	(1) Test Accessory for use with AirCheck G3, EtherScope nXG, LinkRunner AT 4000, or LinkRunner 10G. It can also act as an independent iPerf server.
TEST-ACC-5PK	(5) Test Accessory for use with AirCheck G3, EtherScope nXG, LinkRunner AT 4000, or LinkRunner 10G. It can also act as an independent iPerf server.
TEST-ACC-10PK	(10) Test Accessory for use with AirCheck G3, EtherScope nXG, LinkRunner AT 4000, or LinkRunner 10G. It can also act as an independent iPerf server.
EXT-ANT-TRIBAND	2.4/5/6 GHz directional antenna for use with AirCheck G3, EtherScope nXG, or CyberScope
NXT-2000	USB based 2.4/5/6 GHz spectrum analyzer for AirCheck G3, EtherScope nXG, or CyberScope
G3-PWRADAPTER	AC Charger Replacement
HOLSTER-G3	Field use carrying holster makes troubleshooting on the go easier. Openings allow access to all applicable buttons and interfaces.

Documents

Datasheet

Title/Description	Download
AirCheck G3 Pro Product Datasheet	Download

Flyers

Title/Description	Download
AirCheck G3 Pro Product Flyer	Download
AirCheck G3 Pro vs. EtherScope nXG Product Comparison	Download
AirCheck G3 Pro vs. AirCheck G2 Product Comparison Flyer	Download
AirMapper Site Survey Product Flyer	Download
NXT-2000 Spectrum Analyzer Flyer	Download
NXT Spectrum Analyzer Comparison	Download
AirMapper Ecosystem Flyer	Download
NetAlly Product Selection Guide	Click to View
AllyWare Common Technology Guide	Download
AllyCare Premium Support Services Flyer	Download

Brochure

Title/Description	Download
NetAlly Corporate Product Brochure	Download

Manuals

Title/Description	Download
AirCheck G3 Pro Quick Start Guide	Download
AirCheck G3 Pro User Guide v2.8 (English)	Click to View
AirCheck G3 Pro User Guide v2.6 (Simplified Chinese)	Download
AllyWare™ v2.8 Release Notes	Click to View
Compliance and Safety Guide (English)	Download
Compliance and Safety Guide (Multilingual)	Download

Capabilities

AirCheck G3 AutoTest Profiles
Wi-Fi Analysis, Roaming & Automated Problem Detection
AirMapper Wireless Network Mapping App
Network Discovery, Path Analysis & Security Audits
WiFi Performance, Captures & Spectrum Analysis

The AirCheck G3 Pro provides AutoTest profiles with best practice pass/fail thresholds for quick assessment of Wi-Fi network configurations and services.

Multiple Profiles
Can be created for complex Wi-Fi networks with multiple SSIDs, each with its own set of services tests. Profiles can then be organized into named profile groups that allow one button validation across multiple SSIDs, bands and authentications. With profile groups, engineers can effectively transfer their network configuration and test knowledge to technicians, saving training time and effort.
Air Quality Test
Is it the Wi-Fi network? Find out fast with the Air Quality Test. A quick scan of the channels in your wireless network measures channel utilization and interference (co-channel and adjacent channel), allowing you to instantly identify Wi-Fi network performance problems.
Periodic AutoTest
In this mode, AutoTest executes multiple test profiles at scheduled intervals and forwards the results to Link-Live for long-term analysis. This is an effective way to “monitor” connectivity of your Wi-Fi network for an extended period and diagnose intermittent issues without having to manually execute multiple tests.

AirCheck G3 is field-ready for validating Wi-Fi 7 deployments, ensuring that new features like multi-link operation (MLO), wider channels, WPA3 security.

- Real-time visibility into essential Wi‑Fi 7 parameters like multi-link operation (MLO) configuration
- Visibility across the 2.4, 5, and 6 GHz bands (critical for Wi-Fi 7 validation), including high-resolution spectrum analysis
- Validate 160 MHz and 320 MHz channel usage by checking for overlapping signals or congestion
- With nearly gigabit iPerf throughput, assess whether your enterprise network Wi‑Fi 7 link performance meets design goals
- Diagnose 6 GHz mechanisms of Reduced Neighbor Reports (RNR), Preferred Scanning Channels (PSC), and multi-BSSID beacons
- Test WPA3-Enterprise and other advanced authentication methods supported in Wi-Fi 7
Roaming Analysis
In the Wi-Fi link test graphs anytime the AirCheck G3 Pro roams and connects to a new AP, a green vertical line will be shown in the graph. Seeing the correlation between various factors and roam events can help diagnose roaming issues. Paired with the Connect Log, engineers can determine the exact step in the process that may be causing the failure.
Automated Problem Detection
AirCheck G3 automatically diagnoses various conditions on wireless networks and identifies specific problems which can be sorted by severity or time detected. Drill in to see a detailed description of the problem and recommended course of action to mitigate.NOTE: Users of AirMagnet® WiFi Analyzer (now obsolete) will find the combination of Wi-Fi 7 and 6 GHz support, roaming analysis, and automated problem detection in a handheld instrument with in-depth Wi-Fi analytics an ideal replacement.

With the AirMapper app, AirCheck G3 users can quickly and easily gather location-based Wi-Fi and Bluetooth/BLE measurements and create visual heat maps of key performance metrics in the Link-Live collaboration, reporting, and analysis platform. Simple to use, the AirMapper app is ideal for quick site surveys of new deployments, change validation, and performance verification.

Survey project management capabilities in Link-Live provide a major boost in productivity and collaboration for distributed teams conducting surveys at remote sites. A team lead can create a project in Link-Live, upload and calibrate the floor plan, then automatically push the configured project out to the desired remote analyzers.

Faster and easier Wi-Fi and Bluetooth/BLE site surveys with a rugged handheld analyzer
Automatically identify common Wi-Fi network problems using InSites™ intelligence analysis in Link-Live
Collaborate – easily visualize and share survey data through Link-Live
Simultaneous passive and active Wi-Fi surveys to gather critical site metrics and validate client experience and roaming with one survey
Export Wi-Fi survey data to AirMagnet® Survey PRO for more advanced analysis, planning and reporting

Instantly see what is on the network and where it is connected. Quickly investigate and locate “suspect” devices and identify problems associated with device misconfigurations.

Discovers network devices across multiple VLANs and Wi-Fi SSIDs
Discovery Difference analysis in Link-Live exposes possible security risks in the network infrastructure by showing changes in connected devices
Powerful filter and sort function with automatic problem detection identifies issues such as:
- Duplicate IPs, congested switch ports, and oversubscribed Wi-Fi channels/SSIDs
- Security threats, such as unknown clients and switches, or access points with open authentication
Path Analysis shows the switch/router path to any connected device
Batch authorization workflow makes it easy to identify known vs. unknown devices, enabling “who’s on my network” auditing

Diagnose Wi-Fi performance and easily capture packets for detailed application analysis.

Simultaneously generate and measure IP-based traffic using two Wi-Fi radios
Supports popular iPerf network throughput testing for Wi-Fi networks
Capture wireless traffic to PCAP files for escalation evidence or analysis, with simple but powerful filtering and slicing controls

Using the optional NXT-2000 Portable Spectrum Analyzer, AirCheck G3 Pro offers a view of RF interference in the 2.4, 5, and 6 GHz bands and its impact on the wireless network’s overall performance. Users of AirMagnet® Spectrum XT (now obsolete) will find the combination of spectrum visibility in a handheld instrument with in-depth Wi-Fi analytics an ideal replacement.

Specifications

General
Dimensions	4.98 in x 7.68 in x 1.65 in (102 mm x 196 mm x 42 mm)
Weight	1.05 lbs. (0.48 kg)
Battery	Rechargeable lithium-ion battery pack (3.63 V, 9.75 A, 35.39 Wh)
Battery Life	Typical operating life is 10 hours (Battery life from full charge varies depending on the feature being used); Typical charge time is 3-4 hours.
Display	5.0-inch color LCD with capacitive touchscreen (720 x 1280 pixels)
Host Interface	2 USB Type-A Ports USB Type-C Power and On-the-Go Port RP-SMA External Antenna Port
Memory	Approximately 8 GB available for storing test results and user applications
Charging	USB Type-C 45-W adapter: AC Input Power 100-240 V, 50-60 Hz; DC Output Power 15V (3A)

Wireless
AirCheck G3 has two internal WiFi Radios:	Testing – 2×2 Tri-band 802.11ax wireless radio (IEEE 802.11a/b/g/n/ac/ax compliant) Management – 1×1 Dual-band 802.11ac Wave 2 + Bluetooth 5.0 and BLE wireless radio (IEEE 802.11a/b/ g/n/ac compliant)
Specification Compliance	IEEE 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax
WiFi Connectivity	802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax
Operating Frequencies	Frequencies of channels received and transmitted: 2.4 GHz band: 2.412 to 2.484 GHz (channel 1 to channel 14)* 5 GHz band: 5.170 to 5.320 GHz, 5.500 to 5.700 GHz, 5.745 to 5.825 GHz (channel 36 to channel 165)* 6 GHz band: 5.925 to 7.125 GHz (channel 1 to channel 233)* () Where allowed by country regulations. NOTE: The tester transmits only on the frequencies allowed in the country where it is operating.*

Antennas
Internal WiFi Antennas	Minimum gain 2.0 dBi peak in the 2.4 GHz band, 1.5 dBi peak in the 5 GHz band, and 2.7 dBi peak in the 6 GHz band.
External Directional Antenna	Antenna, frequency range 2.4 to 2.5 GHz, 4.9 to 5.9 GHz. and 6.0 to 7.1 GHz Minimum gain 6.4 dBi peak in the 2.4 GHz band, 8.9 dBi peak in the 5 GHz band, and 8.6 dBi peak in the 6 GHz band.

Environmental
Operating Temperature	32°F to 113°F (0°C to +45°C) NOTE: The battery will not charge if the internal temperature of the device is above 95°F (35°C)
Operating relative humidity (% RH without condensation)	90% (50°F to 95°F; 10°C to 35°C) 75% (95°F to 113°F; 35°C to 45°C)
Storage temperature	-4°F to 140°F (-20°C to +60°C)
Shock and vibration	Meets the requirements of MIL-PRF-28800F for Class 3 Equipment
Safety	IEC 61010-1:2010: Pollution degree 2
Altitude	Operating: 4,000 m; Storage: 12,000 m
EMC	IEC 61326-1: Basic Electromagnetic Environment CISPR 11: Group 1, Class A

Certifications and Compliance

Conforms to relevant European Union directives.
Conforms to relevant Australian Safety and EMC standards.
Complies with 47 CFR Part 15 requirements of the U.S. Federal Communications Commission.
Listed by the Canadian Standards Association

Support

NOTE: All new AIRCHECK-G3-PRO mainframes are sold with the first year (1 year) of AllyCare support included. Additional year(s) of support may be added. Product registration and activation is required within 30 days of first power-on.

Certain features and capabilities of this product are enabled by having an active AllyCare Support services contract. For more information about this product’s AllyCare enabled features please click here. At the end of your existing contract, you must renew your AllyCare Support contract to continue utilizing the features described.

Use these support model numbers for extending support at time of purchase or for support renewal.

Model Number/Name	Description
AIRCHECK-G3-PRO-1YS	1 year AllyCare support for all AIRCHECK G3 PRO models, including “E” (Partial Tri-Band) and “C” (Dual Band only) SKU’S: AIRCHECK-G3-PRO, AIRCHECK-G3-PRO-KT, AIRCHECK-G3-PRO-TKT.
AIRCHECK-G3-PRO-2YS	2 years of AllyCare support for all AIRCHECK G3 PRO models, including “E” (Partial Tri-Band) and “C” (Dual Band only) SKU’S: AIRCHECK-G3-PRO, AIRCHECK-G3-PRO-KT, AIRCHECK-G3-PRO-TKT
AIRCHECK-G3-PRO-3YS	3 years of AllyCare support for all AIRCHECK G3 PRO models, including “E” (Partial Tri-Band) and “C” (Dual Band only) SKU’S: AIRCHECK-G3-PRO, AIRCHECK-G3-PRO-KT, AIRCHECK-G3-PRO-TKT
